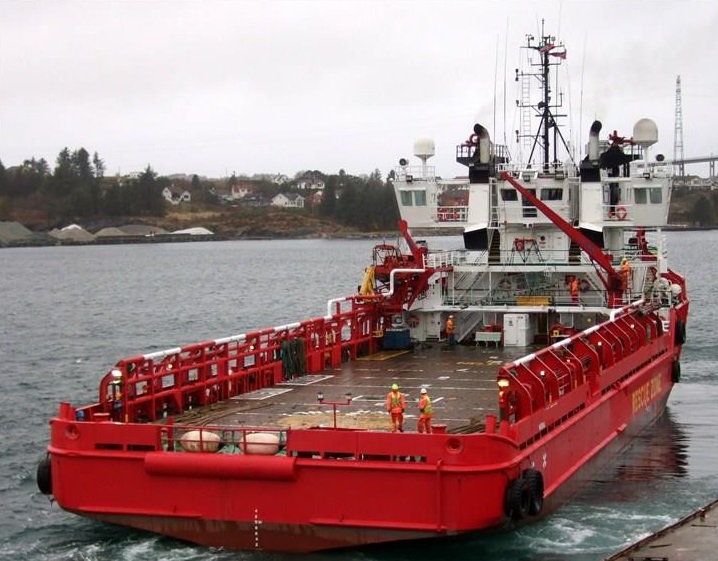

Ref Offshore UT706
From Norwegian owner
Laid up in Norway
Type: PSV; Platform supply vessel Design UT 706
Dwt: 2512
Built: 1983 Molde Verft, Norway.
Class: DNV +1A1; Fire Fighter I OILREC E0; Intermediate overdue since 2015-09; next SS 2018-03
GT/NT: 2169/650
Dimensions: Loa 69,08 Lpp 63,61 B moulded 17,55 D moulded 7,30 Draft Summer 5,05 Freeboard Summer 2,68 m
Deck and area total: 630 m2 (42 m x 15 m)
Deck cargo capacity: 2200 t (max)
Tank capacities in cbm:
-Diesel 914
-Potable water 650
-Drill water 340
-Brine 250 S.G. 1.8
-Mud 344 S.G. 1.8
-Base Oil 198 S.G. 1.8
-Ester 198
-Oil recovery 1040
-Dry Bulk 378 in 8 tks
Discharge:
-Diesel Oil 0-250 m3 / hour at 9 bar Flow Meter with print-out facility
-Potable Water 0-250 m3 / hour at 9 bar
-Drill Water 2 x 170 m3at 9 bar
-Brine 1 x 100 m3 at 9 bar
-Base oil 1 x 160 m3at 9 bar
-Dry Bulk 2 x 20 m3 / hour at 80 psi
-Mud 2 x 50 m3 / hour at 9 bar
Couplings and lines: Weco 4‘’, Weco 5’’ and Avery hardoll 4’’ ; Several reducers onboard
Rescue Deck:
-Fire monitors 2 x 1.500 m3 / hours
-Vertical length 70 m (min.)
-Horizontal length 100 m (min.)
-Deck timber shelter 5 tons / m2
-Rails 2.6 m high
Deck equipment:
-Tugger winch 2 x 10 ton pull
-Deck cranes 1 x 20 t/m Hydralift/Sealand (SWL 2.2 at 9 m)
-Windlass 1 x Brattvag Anchor Windlass
-Anchors 2 x anchors + 1 spare á 2100 kg
-Capstans 2 x 8.5 tons
-FRC 1 x Seabear 23’ FRC’s with 200 BHP/water jet
-FRC launch and recovery 2 x Vestdavit single point davits with chock absorbent
-Sea Rescue 1 x Rescue Scoop Crane operated
-Rescue Areas 2 x Rescue Zones Mid ship + 2 x Drop Zones fwd and aft
-Surface Surveillance 1 x Sodena Surface Surveillance and reporting system
Main Engines: 2 x 3060 BHP Bergen Diesel, Total 6.120 BHP (4500 kW)
Generators:
2 x 1570 kVA (PTO shaft generators)
2 x 244 kW Cummins 440v/60 Hz
2 x 305 kW/Stamford 440/650 Hz
1 x 20 kW 230 v/50 Hz harbour gen.
Propellers: 2 x Controllable pitch; 2500 mm diameter
Rudders: 2 x Spade
Thrusters: 2 x 800 BHP Ulstein RR fwd. 2 x 800 BHP Ulstein RR aft.
Joystick: RR Poscon
Speed / Consumption: 10/10; 14/22 ts
Accommodation: 11 with 1 bed; 7 with 2 beds
Radio Station: GMDSS A1+A2+A3
-Raytheon Standard STR 2000 Radio, incl. HF/MF/Inmarsat C
-Telex Inmarsat C and Radio HF/MF-telex/DSC
-Mobile phone British Vodaphone analogue Mobile
-VHF 2 x Raytheon STR 8500 with DSV
-2 x Sailor 2401
-VHF Portable 3 x ICOM IC-M12
-SART 2 x McMurdo RT9 Radar Transponder 9 GHz
-EPIRB 1 x Lo-Kata 4064 (TY) Cospas-Sarsat
Navigation equipment:
-Radar 1 x Furuno FR2130 – 3 cm
-Radar 1 x Decca Bridgemaster – Arpa – 10 cm
-Radar 1 x Decca Bridgemaster – Guard zone – 3 cm
-Satellite Navigator 1 x Marconi Orcades-C (GPS)
-Echo Sounder 1 x SIMRAD EN
-Gyro compass 1 x Robertson
-Autopilot Decca Pilot 450
-Direction finder Furuno FDA-1
Light ship 1460 tons
